產品介紹 PRODUCT INTRODUCTION

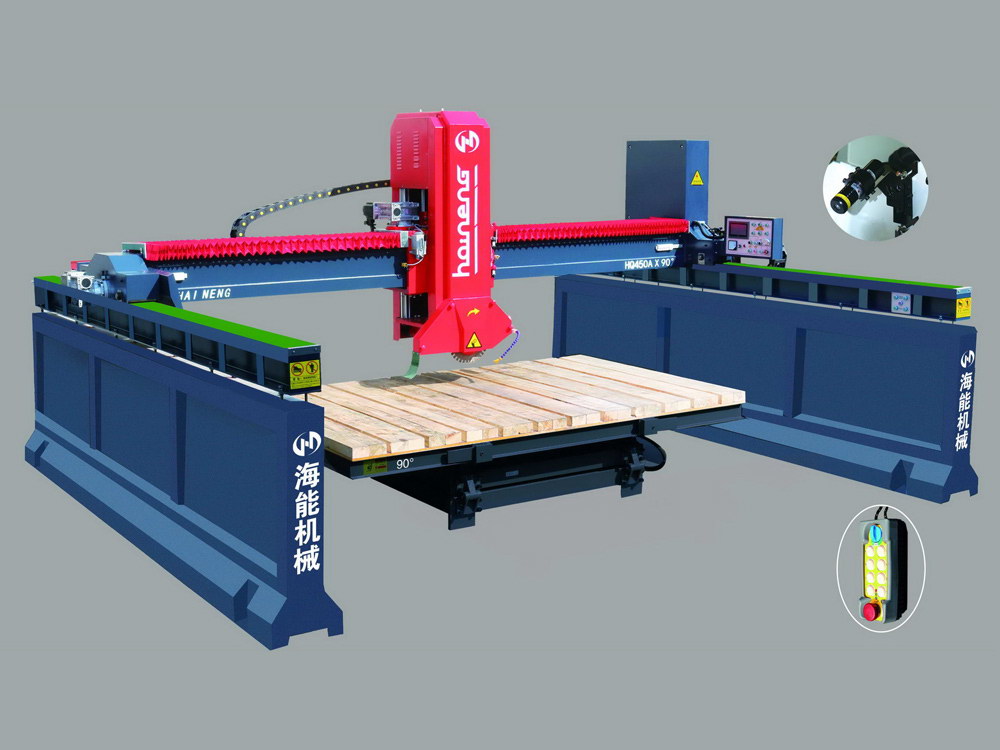

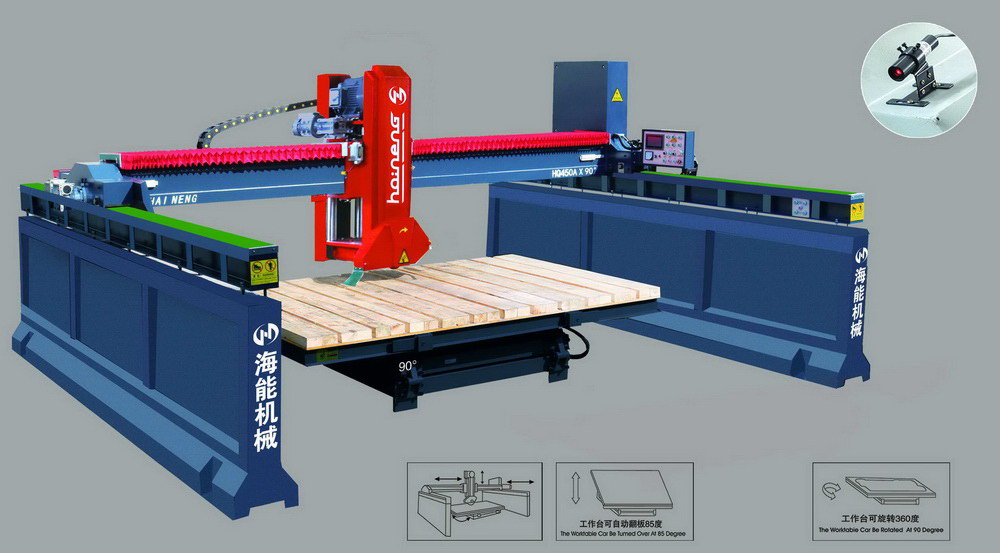

本機采用微電腦控制，觸摸式操作界面，人機對話靈活自如。
主要控制元件均采用國際品牌元件，橫梁釆用油漫式雙ν型軌道，橫向走刀采用無極調速、縱向分片機構采用雙
山形導軌結合高精度編碼器計數，確保了機器工作精度。
標配0-90工作臺,0一85度翻板，主要用于切高精度規格板。
選配360度旋轉每45度自動定位，主要用于切切矩形、八邊形、圓弧形、正圓形。
The main control components are all international famous brand components, the cross-beam adopts ol-mible
This machine adopts microcomputer control, touch-type operation pannel, and man-machine dialogue is flex
mersed double V-shaped track, the transverse pass adopts stepless speed regulation, and the longitudinal splitting
mechanism adopts double mountain-shaped guide rail combined with high-precision encoder counting to ensure
the machine working precision
Standard with 0-90 workbench, 0-85 degree flap, mainly used to cut high-precision specification board

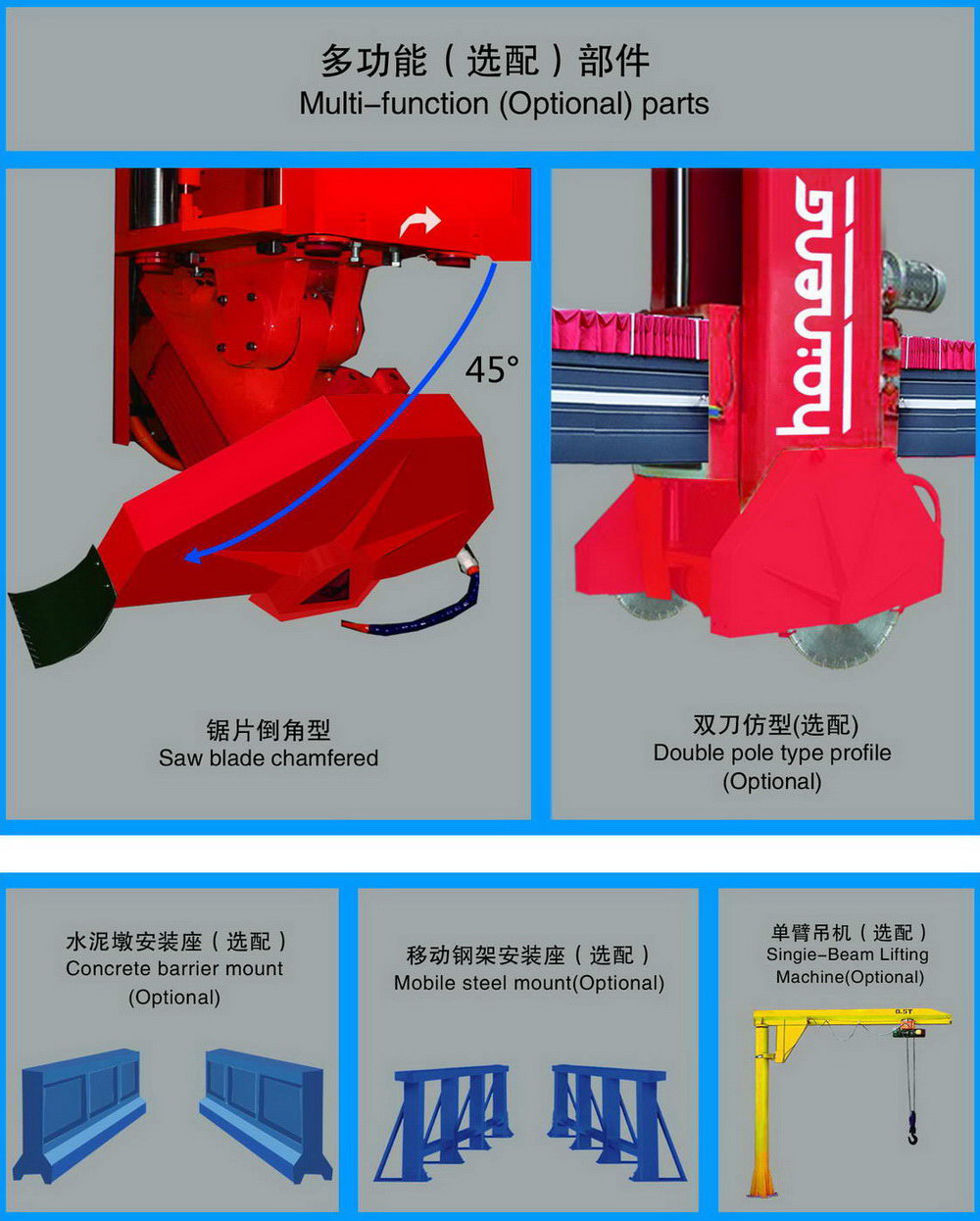

Optional with 360-degree rotation for automatic positioning with every 45 degrees, mainly used for cutting Rectangle,
octagon, arc and perfect circle
