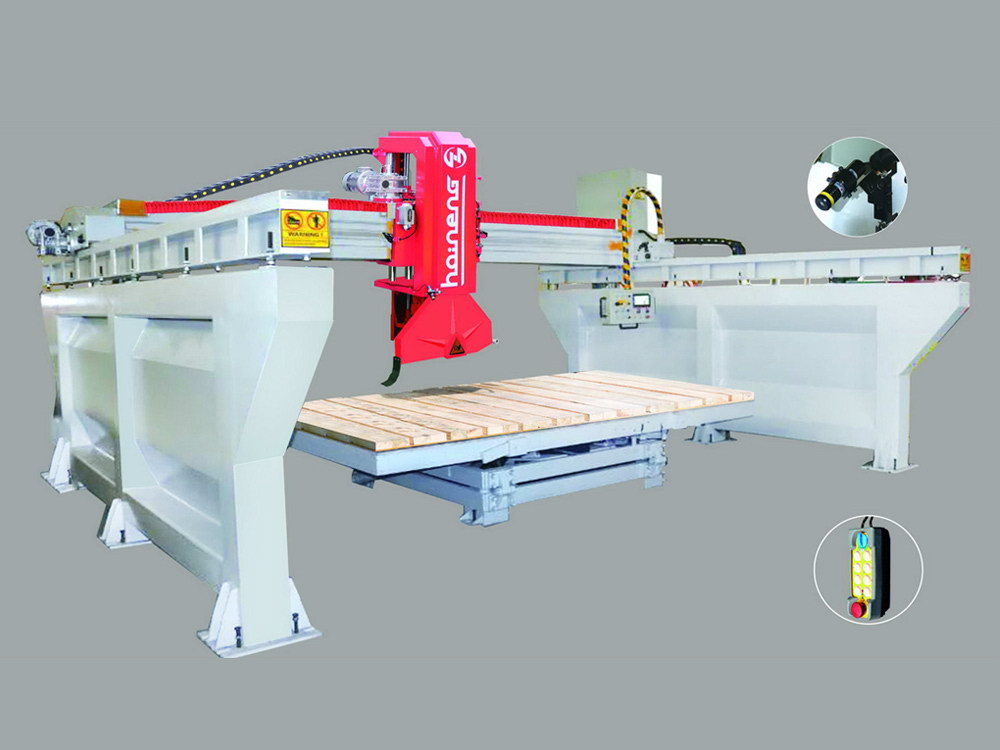

紅外線（鋸片倒角型）橋切機
產品介紹 PRODUCT INTRODUCTION
本機采用微電腦控制，觸摸式操作界面，配無線遙控，人機對話靈活自如。
主要控制元件均采用國際品牌元件，橫梁采用油漫式雙Ⅴ型軌道，橫向走刀采用無極調速、縱向分片機構采用高
精度磁珊計數，確保了機器工作精度。
鋸片自動傾斜45度，工作臺360度旋轉每45度自動定位，可跳躍式定位，附帶任意角度位置及車，可切矩形、
八邊形、圓弧形、正圓形、倒中小角。
配備仿型系統及機構，不僅具備切邊，倒角功能，還具備加工線條功能(選配)
This machine adopts microcomputer control, touch operation interface and wireless remote control, and the man-machine dialogue is
flexible
The main control components are all international famous brand components, the beam adopts oil-immersed double V-shaped track, the
transverse cutting adopts stepless speed regulation, and the longitudinal segmentation mechanism adopts high-precision magnetic
mountain counting to ensure the machine working precision

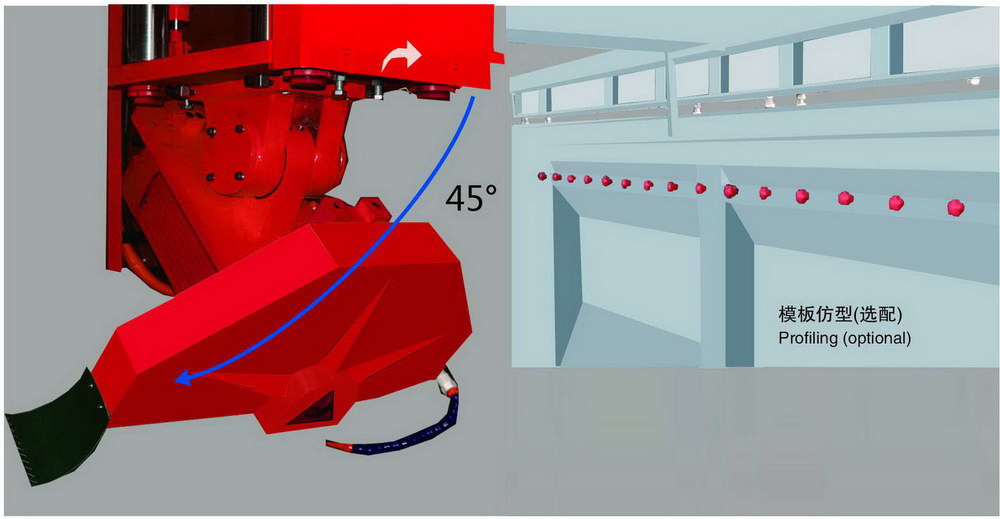

The saw blade is automatically tilted by 45 degrees, and the table is automatically rotated by 45 degrees per 45 degrees. It can be jumped
and positioned with any angular position and brake. It can cut rectangular, octagonal, cir cular, round, and small and medium angles. shape
Equipped with profiling system and mechanism, it not only has edge cutting, chamfering function, but also has profiling( optional).
